BMKMultiTexturePolylineView类 参考

此文件定义分段多纹理折线View since 6.5.0 更多...

#import <BMKMultiTexturePolylineView.h>

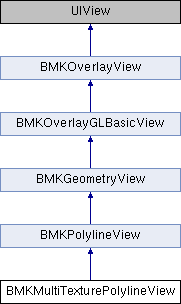

类 BMKMultiTexturePolylineView 继承关系图:
BMKPolylineView BMKGeometryView BMKOverlayGLBasicView BMKOverlayView

构造函数

(nullable instancetype) - initWithMultiPolyline:

- 构造函数 继承自 BMKPolylineView
(nullable instancetype) - initWithPolyline:

(BOOL isFocus) - __deprecated_msg
 是否分段纹理/分段颜色绘制(突出显示),默认YES,YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制 更多...

(NSArray< UIColor * > *colors) - __deprecated_msg

- 构造函数 继承自 BMKOverlayGLBasicView
(CGPathRef path) - __deprecated_msg
 path对象 更多...

(BOOL lineDash) - __deprecated_msg
 是否为虚线样式,默认NO 更多...

- 构造函数 继承自 BMKOverlayView
(nullable instancetype) - initWithOverlay:

(GLuint) - loadStrokeTextureImage:

(BOOL) - loadStrokeTextureImages:

(void) - setOverlayGeometryDelegate:
 设置该overlay的GeometryDelegate 更多...

(CGPoint) - pointForMapPoint:

(BMKMapPoint- mapPointForPoint:

(CGRect) - rectForMapRect:

(BMKMapRect- mapRectForRect:

(BOOL) - canDrawMapRect:zoomScale:

(void) - drawMapRect:zoomScale:inContext:

(void) - setNeedsDisplayInMapRect:

(void) - renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:

(void) - renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:

(void) - renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDashType:

(void) - renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDash:

(void) - renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:

(void) - renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:tileTexture:keepScale:

(void) - renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:strokeColor:looped:tileTexture:keepScale:

(void) - renderTexturedPolyLineWithPoints:lineWidth:textureID:strokeColor:isFoucs:keepScale:lineJoinType:lineCapType:

(void) - renderMultiTexturedPolyLineWithPartPoints:lineWidth:textureIndexs:isFoucs:keepScale:lineJoinType:lineCapType:

(void) - renderDashPolyLineWithPoints:lineWidth:strokeColor:lineDashType:

(void) - renderMultiDashPolyLineWithPartPoints:lineWidth:textureIndexs:lineDashType:

(void) - renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:

(void) - renderATRegionWithPoint:pointCount:fillColor:usingTriangleFan:

(void) - rendeCircleWithPoints:pointCount:lineWidth:fillColor:strokeColor:

(void) - rendePolygonWithPoints:pointCount:lineWidth:fillColor:strokeColor:

(void) - glRender


属性

BMKMultiPolylinemultiPolyline
 该View对应的折线数据对象 更多...

NSArray< UIImage * > * textureImages

NSArray< UIImage * > * textureImagesProgressForward

NSArray< UIImage * > * textureImagesProgressBackward

- 属性 继承自 BMKPolylineView
BMKPolylinepolyline
 该View对应的折线数据对象 更多...

BMKLineJoinType lineJoinType
 LineJoinType,默认是kBMKLineJoinBevel(不支持虚线) 更多...

BMKLineCapType lineCapType
 LineCapType,默认是kBMKLineCapButt (不支持虚线) 更多...

BOOL isClickable
 是否可点击,默认YES;since 6.5.7 更多...

BMKLineBloomMode lineBloomMode

BMKLineBloomDirection lineBloomDirection
 默认向两侧发光,kBMKLineBloomDirectionAround; since 6.6.3 更多...

CGFloat lineBloomWidth
 发光处宽度,默认 0.0f;since 6.5.7 更多...

CGFloat lineBloomAlpha
 发光处透明度,取值范围 [0 ~ 255],默认 255.0f;since 6.5.7 更多...

CGFloat lineBloomGradientASPeed

int lineBloomBlurTimes

- 属性 继承自 BMKGeometryView
UIColor * fillColor

UIColor * strokeColor

UIColor * strokeColorProgressForward
 加载绘制当前进度之前的部分的画笔颜色,不设置时当前进度之前的路线不显示,轨迹动画化使用 since 6.6.3 更多...

UIColor * strokeColorProgressBackward
 加载绘制当前进度之后的部分的画笔颜色,不设置时当前进度之后的路线不显示,轨迹动画化使用 since 6.6.3 更多...

CGFloat lineWidth
 画笔宽度,默认为0 更多...

BMKLineDashType lineDashType
 虚线类型, since 5.0.0,默认kBMKLineDashTypeNone (仅支持颜色虚线) 更多...

- 属性 继承自 BMKOverlayGLBasicView
UIImage * textureImage

UIImage * textureImageProgressForward

UIImage * textureImageProgressBackward

BOOL keepScale
 纹理图片是否缩放,默认NO 更多...

- 属性 继承自 BMKOverlayView
id< BMKOverlayoverlay
 关联的overlay对象 更多...

GLuint strokeTextureID
 关联的纹理对象ID 更多...


额外继承的成员函数

- Protected 属性 继承自 BMKOverlayView
package id< BMKOverlay_overlay

BMKMapRect _boundingMapRect

CGAffineTransform _mapTransform

id _geometryDelegate

id _canDrawCache

BOOL keepScale

CFTimeInterval _lastTile

CFRunLoopTimerRef _scheduledScaleTimer

struct {
   unsigned int   keepAlive:1

   unsigned int   levelCrossFade:1

   unsigned int   drawingDisabled:1

   unsigned int   usesTiledLayer:1

_flags


详细描述

此文件定义分段多纹理折线View since 6.5.0

函数文档

◆ initWithMultiPolyline:

- (nullable instancetype) initWithMultiPolyline: (BMKMultiPolyline *)  multiPolyline

根据指定的折线生成一个分段多纹理折线View

参数
multiPolyline指定的折线数据对象
返回
新生成的折线View

属性说明

◆ multiPolyline

- (BMKMultiPolyline*) multiPolyline
readnonatomicassign

该View对应的折线数据对象

◆ textureImages

- (NSArray<UIImage *>*) textureImages
readwritenonatomiccopy

加载分段纹理绘制 所需的纹理图片 since 6.5.0 必须UIImage数组,opengl要求图片宽高必须是2的n次幂

◆ textureImagesProgressBackward

- (NSArray<UIImage *>*) textureImagesProgressBackward
readwritenonatomiccopy

当前进度之后的部分分段纹理绘制所需的纹理图片列表,不设置时当前进度之后的路线不显示,轨迹动画化使用 since 6.6.3 必须UIImage数组,opengl要求图片宽高必须是2的n次幂

◆ textureImagesProgressForward

- (NSArray<UIImage *>*) textureImagesProgressForward
readwritenonatomiccopy

当前进度之前的部分分段纹理绘制所需的纹理图片列表,不设置时当前进度之前的路线不显示,轨迹动画化使用 since 6.6.3 必须UIImage数组,opengl要求图片宽高必须是2的n次幂
