此类用于定义一个折线View 更多...

#import <BMKPolylineView.h>

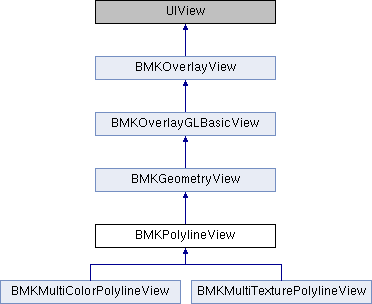

类 BMKPolylineView 继承关系图:

构造函数
(nullable instancetype)	- initWithPolyline:

(BOOL isFocus)	- __deprecated_msg
	是否分段纹理/分段颜色绘制（突出显示），默认YES，YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制更多...

(NSArray< UIColor * > *colors)	- __deprecated_msg

构造函数继承自 BMKOverlayGLBasicView
(CGPathRef path)	- __deprecated_msg
	path对象更多...

(BOOL lineDash)	- __deprecated_msg
	是否为虚线样式，默认NO 更多...

构造函数继承自 BMKOverlayView
(nullable instancetype)	- initWithOverlay:

(GLuint)	- loadStrokeTextureImage:

(BOOL)	- loadStrokeTextureImages:

(void)	- setOverlayGeometryDelegate:
	设置该overlay的GeometryDelegate 更多...

(CGPoint)	- pointForMapPoint:

(BMKMapPoint)	- mapPointForPoint:

(CGRect)	- rectForMapRect:

(BMKMapRect)	- mapRectForRect:

(BOOL)	- canDrawMapRect:zoomScale:

(void)	- drawMapRect:zoomScale:inContext:

(void)	- setNeedsDisplayInMapRect:

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:

(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDashType:

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDash:

(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:

(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:tileTexture:keepScale:

(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:strokeColor:looped:tileTexture:keepScale:

(void)	- renderTexturedPolyLineWithPoints:lineWidth:textureID:strokeColor:isFoucs:keepScale:lineJoinType:lineCapType:

(void)	- renderMultiTexturedPolyLineWithPartPoints:lineWidth:textureIndexs:isFoucs:keepScale:lineJoinType:lineCapType:

(void)	- renderDashPolyLineWithPoints:lineWidth:strokeColor:lineDashType:

(void)	- renderMultiDashPolyLineWithPartPoints:lineWidth:textureIndexs:lineDashType:

(void)	- renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:

(void)	- renderATRegionWithPoint:pointCount:fillColor:usingTriangleFan:

(void)	- rendeCircleWithPoints:pointCount:lineWidth:fillColor:strokeColor:

(void)	- rendePolygonWithPoints:pointCount:lineWidth:fillColor:strokeColor:

(void)	- glRender

属性
BMKPolyline *	polyline
	该View对应的折线数据对象更多...

BMKLineJoinType	lineJoinType
	LineJoinType，默认是kBMKLineJoinBevel（不支持虚线）更多...

BMKLineCapType	lineCapType
	LineCapType，默认是kBMKLineCapButt (不支持虚线) 更多...

BOOL	isClickable
	是否可点击，默认YES；since 6.5.7 更多...

BMKLineBloomMode	lineBloomMode

BMKLineBloomDirection	lineBloomDirection
	默认向两侧发光，kBMKLineBloomDirectionAround； since 6.6.3 更多...

CGFloat	lineBloomWidth
	发光处宽度，默认 0.0f；since 6.5.7 更多...

CGFloat	lineBloomAlpha
	发光处透明度，取值范围 [0 ~ 255]，默认 255.0f；since 6.5.7 更多...

CGFloat	lineBloomGradientASPeed

int	lineBloomBlurTimes

属性继承自 BMKGeometryView
UIColor *	fillColor

UIColor *	strokeColor

UIColor *	strokeColorProgressForward
	加载绘制当前进度之前的部分的画笔颜色，不设置时当前进度之前的路线不显示，轨迹动画化使用 since 6.6.3 更多...

UIColor *	strokeColorProgressBackward
	加载绘制当前进度之后的部分的画笔颜色，不设置时当前进度之后的路线不显示，轨迹动画化使用 since 6.6.3 更多...

CGFloat	lineWidth
	画笔宽度，默认为0 更多...

BMKLineDashType	lineDashType
	虚线类型, since 5.0.0，默认kBMKLineDashTypeNone (仅支持颜色虚线) 更多...

属性继承自 BMKOverlayGLBasicView
UIImage *	textureImage

UIImage *	textureImageProgressForward

UIImage *	textureImageProgressBackward

BOOL	keepScale
	纹理图片是否缩放，默认NO 更多...

属性继承自 BMKOverlayView
id< BMKOverlay >	overlay
	关联的overlay对象更多...

GLuint	strokeTextureID
	关联的纹理对象ID 更多...

额外继承的成员函数
Protected 属性继承自 BMKOverlayView
package id< BMKOverlay >	_overlay

BMKMapRect	_boundingMapRect

CGAffineTransform	_mapTransform

id	_geometryDelegate

id	_canDrawCache

BOOL	keepScale

CFTimeInterval	_lastTile

CFRunLoopTimerRef	_scheduledScaleTimer

struct {
unsigned int keepAlive:1

unsigned int levelCrossFade:1

unsigned int drawingDisabled:1

unsigned int usesTiledLayer:1

}	_flags

详细描述

此类用于定义一个折线View

函数文档

◆ __deprecated_msg [1/2]

- (BOOL isFocus) __deprecated_msg ("已废弃since 5.0.0")

是否分段纹理/分段颜色绘制（突出显示），默认YES，YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制

实现了 BMKOverlayGLBasicView.

◆ __deprecated_msg [2/2]

- (NSArray<UIColor > colors) __deprecated_msg	("已废弃since 6.5.)	0
	(请使用BMKMultiColorPolylineView中strokeColors")

使用分段颜色绘制时，必须设置（内容必须为UIColor）注：请使用 - (UIColor *)initWithRed:(CGFloat)red green:(CGFloat)green blue:(CGFloat)blue alpha:(CGFloat)alpha; 初始化UIColor。使用[UIColor ***Color]初始化时，个别case转换成RGB后会有问题

◆ initWithPolyline:

- (nullable instancetype) initWithPolyline: (BMKPolyline *) polyline

根据指定的折线生成一个折线View

参数

polyline 指定的折线数据对象

返回: 新生成的折线View

属性说明

◆ isClickable

- (BOOL) isClickable

readwritenonatomicassign

是否可点击，默认YES；since 6.5.7

◆ lineBloomAlpha

- (CGFloat) lineBloomAlpha

readwritenonatomicassign

发光处透明度，取值范围 [0 ~ 255]，默认 255.0f；since 6.5.7

◆ lineBloomBlurTimes

- (int) lineBloomBlurTimes

readwritenonatomicassign

模糊次数 since 6.5.7 取值范围 [1~10]，默认值为 1 注意：模糊发光模式下该属性生效

◆ lineBloomDirection

- (BMKLineBloomDirection) lineBloomDirection

readwritenonatomicassign

默认向两侧发光，kBMKLineBloomDirectionAround； since 6.6.3

◆ lineBloomGradientASPeed

- (CGFloat) lineBloomGradientASPeed

readwritenonatomicassign

透明度渐变速度 since 6.5.7 取值范围 [1.0f ~ 10.0f]，默认值为 5.0f 注意：渐变发光模式下该属性生效

◆ lineBloomMode

- (BMKLineBloomMode) lineBloomMode

readwritenonatomicassign

发光模式，仅支持颜色实折线；since 6.5.7 默认不发光，kBMKLineBloomModeNone

◆ lineBloomWidth

- (CGFloat) lineBloomWidth

readwritenonatomicassign

发光处宽度，默认 0.0f；since 6.5.7

◆ lineCapType

- (BMKLineCapType) lineCapType

readwritenonatomicassign

LineCapType，默认是kBMKLineCapButt (不支持虚线)

◆ lineJoinType

- (BMKLineJoinType) lineJoinType

readwritenonatomicassign

LineJoinType，默认是kBMKLineJoinBevel（不支持虚线）

◆ polyline

- (BMKPolyline*) polyline

readnonatomicassign

该View对应的折线数据对象

该类的文档由以下文件生成:

BaiduMapAPI_Map.framework/Headers/BMKPolylineView.h
