BMKMultiTexturePolylineView类 参考

此文件定义分段多纹理折线View since 6.5.0 更多...

#include <BMKMultiTexturePolylineView.h>

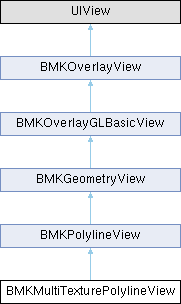

类 BMKMultiTexturePolylineView 继承关系图:

构造函数
(nullable instancetype)	- initWithMultiPolyline:
构造函数 继承自 BMKPolylineView
(nullable instancetype)	- initWithPolyline:
(BOOL isFocus)	- __deprecated_msg
	是否分段纹理/分段颜色绘制（突出显示），默认YES，YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制
(NSArray< UIColor * > *colors)	- __deprecated_msg
构造函数 继承自 BMKOverlayGLBasicView
(CGPathRef path)	- __deprecated_msg
	path对象
(BOOL lineDash)	- __deprecated_msg
	是否为虚线样式，默认NO
构造函数 继承自 BMKOverlayView
(nullable instancetype)	- initWithOverlay:
(GLuint)	- loadStrokeTextureImage:
(BOOL)	- loadStrokeTextureImages:
(void)	- setOverlayGeometryDelegate:
	设置该overlay的GeometryDelegate
(CGPoint)	- pointForMapPoint:
(BMKMapPoint)	- mapPointForPoint:
(CGRect)	- rectForMapRect:
(BMKMapRect)	- mapRectForRect:
(BOOL)	- canDrawMapRect:zoomScale:
(void)	- drawMapRect:zoomScale:inContext:
(void)	- setNeedsDisplayInMapRect:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:
(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDashType:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDash:
(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:
(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:tileTexture:keepScale:
(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:strokeColor:looped:tileTexture:keepScale:
(void)	- renderTexturedPolyLineWithPoints:lineWidth:textureID:strokeColor:isFoucs:keepScale:lineJoinType:lineCapType:
(void)	- renderMultiTexturedPolyLineWithPartPoints:lineWidth:textureIndexs:isFoucs:keepScale:lineJoinType:lineCapType:
(void)	- renderDashPolyLineWithPoints:lineWidth:strokeColor:lineDashType:
(void)	- renderMultiDashPolyLineWithPartPoints:lineWidth:textureIndexs:lineDashType:
(void)	- renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:
(void)	- renderATRegionWithPoint:pointCount:fillColor:usingTriangleFan:
(void)	- rendeCircleWithPoints:pointCount:lineWidth:fillColor:strokeColor:
(void)	- rendePolygonWithPoints:pointCount:lineWidth:fillColor:strokeColor:
(void)	- glRender

属性
BMKMultiPolyline *	multiPolyline
	该View对应的折线数据对象
NSArray< UIImage * > *	textureImages
NSArray< UIImage * > *	textureImagesProgressForward
NSArray< UIImage * > *	textureImagesProgressBackward
属性 继承自 BMKPolylineView
BMKPolyline *	polyline
	该View对应的折线数据对象
BMKLineJoinType	lineJoinType
	LineJoinType，默认是kBMKLineJoinBevel（不支持虚线）
BMKLineCapType	lineCapType
	LineCapType，默认是kBMKLineCapButt (不支持虚线)
BOOL	isClickable
	是否可点击，默认YES；since 6.5.7
BMKLineBloomMode	lineBloomMode
BMKLineBloomDirection	lineBloomDirection
	默认向两侧发光，kBMKLineBloomDirectionAround； since 6.6.3
CGFloat	lineBloomWidth
	发光处宽度，默认 0.0f；since 6.5.7
CGFloat	lineBloomAlpha
	发光处透明度，取值范围 [0 ~ 255]，默认 255.0f；since 6.5.7
CGFloat	lineBloomGradientASPeed
int	lineBloomBlurTimes
属性 继承自 BMKGeometryView
UIColor *	fillColor
UIColor *	strokeColor
UIColor *	strokeColorProgressForward
	加载绘制当前进度之前的部分的画笔颜色，不设置时当前进度之前的路线不显示，轨迹动画化使用 since 6.6.3
UIColor *	strokeColorProgressBackward
	加载绘制当前进度之后的部分的画笔颜色，不设置时当前进度之后的路线不显示，轨迹动画化使用 since 6.6.3
CGFloat	lineWidth
	画笔宽度，默认为0
BMKLineDashType	lineDashType
	虚线类型, since 5.0.0，默认kBMKLineDashTypeNone (仅支持颜色虚线)
属性 继承自 BMKOverlayGLBasicView
UIImage *	textureImage
UIImage *	textureImageProgressForward
UIImage *	textureImageProgressBackward
BOOL	keepScale
	纹理图片是否缩放，默认NO
属性 继承自 BMKOverlayView
id< BMKOverlay >	overlay
	关联的overlay对象
GLuint	strokeTextureID
	关联的纹理对象ID

额外继承的成员函数
Protected 属性 继承自 BMKOverlayView
package id< BMKOverlay >	_overlay
BMKMapRect	_boundingMapRect
CGAffineTransform	_mapTransform
id	_geometryDelegate
id	_canDrawCache
BOOL	keepScale
CFTimeInterval	_lastTile
CFRunLoopTimerRef	_scheduledScaleTimer
struct {
unsigned int   keepAlive:1
unsigned int   levelCrossFade:1
unsigned int   drawingDisabled:1
unsigned int   usesTiledLayer:1
}	_flags

详细描述

此文件定义分段多纹理折线View since 6.5.0

函数文档

initWithMultiPolyline:

- (nullable instancetype) initWithMultiPolyline:

(BMKMultiPolyline *)

multiPolyline

根据指定的折线生成一个分段多纹理折线View

参数

multiPolyline

指定的折线数据对象

返回

新生成的折线View

属性说明

multiPolyline

- (BMKMultiPolyline*) multiPolyline

readnonatomicassign

该View对应的折线数据对象

textureImages

- (NSArray<UIImage *>*) textureImages

readwritenonatomiccopy

加载分段纹理绘制 所需的纹理图片 since 6.5.0 必须UIImage数组，opengl要求图片宽高必须是2的n次幂

textureImagesProgressBackward

- (NSArray<UIImage *>*) textureImagesProgressBackward

readwritenonatomiccopy

当前进度之后的部分分段纹理绘制所需的纹理图片列表，不设置时当前进度之后的路线不显示，轨迹动画化使用 since 6.6.3 必须UIImage数组，opengl要求图片宽高必须是2的n次幂

textureImagesProgressForward

- (NSArray<UIImage *>*) textureImagesProgressForward

readwritenonatomiccopy

当前进度之前的部分分段纹理绘制所需的纹理图片列表，不设置时当前进度之前的路线不显示，轨迹动画化使用 since 6.6.3 必须UIImage数组，opengl要求图片宽高必须是2的n次幂

---

该类的文档由以下文件生成:

• BaiduMapAPI_Map.framework/Headers/BMKMultiTexturePolylineView.h
