BMKGeometryView类 参考

该类定义了一个用opengl绘制geometry的基类 更多...

#include <BMKGeometryView.h>

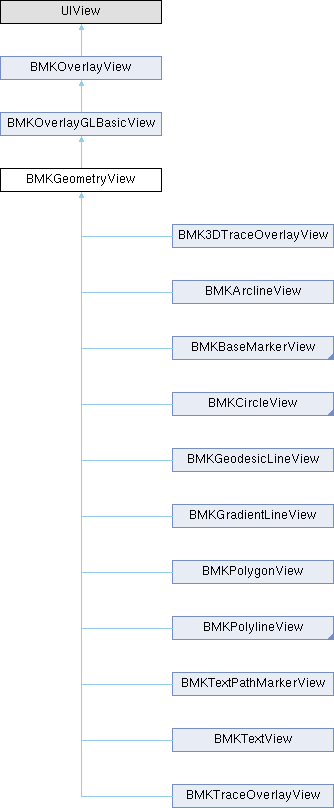

类 BMKGeometryView 继承关系图:

属性
UIColor *	fillColor
UIColor *	strokeColor
UIColor *	strokeColorProgressForward
	加载绘制当前进度之前的部分的画笔颜色，不设置时当前进度之前的路线不显示，轨迹动画化使用 since 6.6.3
UIColor *	strokeColorProgressBackward
	加载绘制当前进度之后的部分的画笔颜色，不设置时当前进度之后的路线不显示，轨迹动画化使用 since 6.6.3
CGFloat	lineWidth
	画笔宽度，默认为0
BMKLineDashType	lineDashType
	虚线类型, since 5.0.0，默认kBMKLineDashTypeNone (仅支持颜色虚线)
属性 继承自 BMKOverlayGLBasicView
UIImage *	textureImage
UIImage *	textureImageProgressForward
UIImage *	textureImageProgressBackward
BOOL	keepScale
	纹理图片是否缩放，默认NO
属性 继承自 BMKOverlayView
id< BMKOverlay >	overlay
	关联的overlay对象
GLuint	strokeTextureID
	关联的纹理对象ID

额外继承的成员函数
构造函数 继承自 BMKOverlayGLBasicView
(CGPathRef path)	- __deprecated_msg
	path对象
(BOOL lineDash)	- __deprecated_msg
	是否为虚线样式，默认NO
(BOOL tileTexture)	- __deprecated_msg
	是否纹理图片平铺绘制，默认NO
构造函数 继承自 BMKOverlayView
(nullable instancetype)	- initWithOverlay:
(GLuint)	- loadStrokeTextureImage:
(BOOL)	- loadStrokeTextureImages:
(void)	- setOverlayGeometryDelegate:
	设置该overlay的GeometryDelegate
(CGPoint)	- pointForMapPoint:
(BMKMapPoint)	- mapPointForPoint:
(CGRect)	- rectForMapRect:
(BMKMapRect)	- mapRectForRect:
(BOOL)	- canDrawMapRect:zoomScale:
(void)	- drawMapRect:zoomScale:inContext:
(void)	- setNeedsDisplayInMapRect:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:
(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDashType:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDash:
(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:
(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:tileTexture:keepScale:
(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:strokeColor:looped:tileTexture:keepScale:
(void)	- renderTexturedPolyLineWithPoints:lineWidth:textureID:strokeColor:isFoucs:keepScale:lineJoinType:lineCapType:
(void)	- renderMultiTexturedPolyLineWithPartPoints:lineWidth:textureIndexs:isFoucs:keepScale:lineJoinType:lineCapType:
(void)	- renderDashPolyLineWithPoints:lineWidth:strokeColor:lineDashType:
(void)	- renderMultiDashPolyLineWithPartPoints:lineWidth:textureIndexs:lineDashType:
(void)	- renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:
(void)	- renderATRegionWithPoint:pointCount:fillColor:usingTriangleFan:
(void)	- rendeCircleWithPoints:pointCount:lineWidth:fillColor:strokeColor:
(void)	- rendePolygonWithPoints:pointCount:lineWidth:fillColor:strokeColor:
(void)	- glRender
Protected 属性 继承自 BMKOverlayView
package id< BMKOverlay >	_overlay
BMKMapRect	_boundingMapRect
CGAffineTransform	_mapTransform
id	_geometryDelegate
id	_canDrawCache
BOOL	keepScale
CFTimeInterval	_lastTile
CFRunLoopTimerRef	_scheduledScaleTimer
struct {
unsigned int   keepAlive:1
unsigned int   levelCrossFade:1
unsigned int   drawingDisabled:1
unsigned int   usesTiledLayer:1
}	_flags

详细描述

该类定义了一个用opengl绘制geometry的基类

属性说明

fillColor

- (UIColor*) fillColor

readwritenonatomicstrong

填充颜色 注：请使用 - (UIColor *)initWithRed:(CGFloat)red green:(CGFloat)green blue:(CGFloat)blue alpha:(CGFloat)alpha; 初始化UIColor。 使用[UIColor ***Color]初始化时，个别case转换成RGB后会有问题

lineDashType

- (BMKLineDashType) lineDashType

readwritenonatomicassign

虚线类型, since 5.0.0，默认kBMKLineDashTypeNone (仅支持颜色虚线)

lineWidth

- (CGFloat) lineWidth

readwritenonatomicassign

画笔宽度，默认为0

strokeColor

- (UIColor*) strokeColor

readwritenonatomicstrong

画笔颜色 注：请使用 - (UIColor *)initWithRed:(CGFloat)red green:(CGFloat)green blue:(CGFloat)blue alpha:(CGFloat)alpha; 初始化UIColor。 使用[UIColor ***Color]初始化时，个别case转换成RGB后会有问题

strokeColorProgressBackward

- (UIColor*) strokeColorProgressBackward

readwritenonatomicstrong

加载绘制当前进度之后的部分的画笔颜色，不设置时当前进度之后的路线不显示，轨迹动画化使用 since 6.6.3

strokeColorProgressForward

- (UIColor*) strokeColorProgressForward

readwritenonatomicstrong

加载绘制当前进度之前的部分的画笔颜色，不设置时当前进度之前的路线不显示，轨迹动画化使用 since 6.6.3

---

该类的文档由以下文件生成:

• BaiduMapAPI_Map.framework/Headers/BMKGeometryView.h
