BMKPolylineView类 参考

此类用于定义一个折线View 更多...

#import <BMKPolylineView.h>

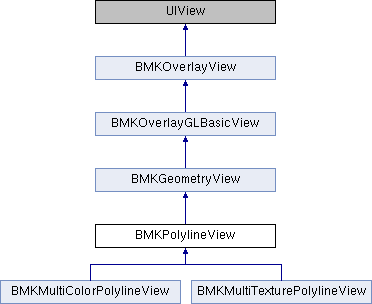

类 BMKPolylineView 继承关系图:

构造函数
(nullable instancetype)	- initWithPolyline:
(BOOL isFocus)	- __deprecated_msg
	是否分段纹理/分段颜色绘制（突出显示），默认YES，YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制
(NSArray< UIColor * > *colors)	- __deprecated_msg
构造函数 继承自 BMKOverlayGLBasicView
(CGPathRef path)	- __deprecated_msg
	path对象
(BOOL lineDash)	- __deprecated_msg
	是否为虚线样式，默认NO
构造函数 继承自 BMKOverlayView
(nullable instancetype)	- initWithOverlay:
(GLuint)	- loadStrokeTextureImage:
(BOOL)	- loadStrokeTextureImages:
(void)	- setOverlayGeometryDelegate:
	设置该overlay的GeometryDelegate
(CGPoint)	- pointForMapPoint:
(BMKMapPoint)	- mapPointForPoint:
(CGRect)	- rectForMapRect:
(BMKMapRect)	- mapRectForRect:
(BOOL)	- canDrawMapRect:zoomScale:
(void)	- drawMapRect:zoomScale:inContext:
(void)	- setNeedsDisplayInMapRect:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:
(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDashType:
(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDash:
(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:
(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:tileTexture:keepScale:
(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:strokeColor:looped:tileTexture:keepScale:
(void)	- renderTexturedPolyLineWithPoints:lineWidth:textureID:strokeColor:isFoucs:keepScale:lineJoinType:lineCapType:
(void)	- renderMultiTexturedPolyLineWithPartPoints:lineWidth:textureIndexs:isFoucs:keepScale:lineJoinType:lineCapType:
(void)	- renderDashPolyLineWithPoints:lineWidth:strokeColor:lineDashType:
(void)	- renderMultiDashPolyLineWithPartPoints:lineWidth:textureIndexs:lineDashType:
(void)	- renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:
(void)	- renderATRegionWithPoint:pointCount:fillColor:usingTriangleFan:
(void)	- rendeCircleWithPoints:pointCount:lineWidth:fillColor:strokeColor:
(void)	- rendePolygonWithPoints:pointCount:lineWidth:fillColor:strokeColor:
(void)	- glRender

属性
BMKPolyline *	polyline
	该View对应的折线数据对象
BMKLineJoinType	lineJoinType
	LineJoinType，默认是kBMKLineJoinBevel（不支持虚线）
BMKLineCapType	lineCapType
	LineCapType，默认是kBMKLineCapButt (不支持虚线)
BOOL	isClickable
	是否可点击，默认YES；since 6.5.7
BMKLineBloomMode	lineBloomMode
CGFloat	lineBloomWidth
	发光处宽度，默认 0.0f；since 6.5.7
CGFloat	lineBloomAlpha
	发光处透明度，取值范围 [0 ~ 255]，默认 255.0f；since 6.5.7
CGFloat	lineBloomGradientASPeed
int	lineBloomBlurTimes
属性 继承自 BMKGeometryView
UIColor *	fillColor
UIColor *	strokeColor
CGFloat	lineWidth
	画笔宽度，默认为0
BMKLineDashType	lineDashType
	虚线类型, since 5.0.0，默认kBMKLineDashTypeNone (仅支持颜色虚线)
属性 继承自 BMKOverlayGLBasicView
UIImage *	textureImage
BOOL	keepScale
	纹理图片是否缩放，默认NO
属性 继承自 BMKOverlayView
id< BMKOverlay >	overlay
	关联的overlay对象
GLuint	strokeTextureID
	关联的纹理对象ID

额外继承的成员函数
Protected 属性 继承自 BMKOverlayView
package id< BMKOverlay >	_overlay
BMKMapRect	_boundingMapRect
CGAffineTransform	_mapTransform
id	_geometryDelegate
id	_canDrawCache
BOOL	keepScale
CFTimeInterval	_lastTile
CFRunLoopTimerRef	_scheduledScaleTimer
struct {
unsigned int   keepAlive:1
unsigned int   levelCrossFade:1
unsigned int   drawingDisabled:1
unsigned int   usesTiledLayer:1
}	_flags

详细描述

此类用于定义一个折线View

函数文档

__deprecated_msg

- (NSArray<UIColor *>* colors) __deprecated_msg		("已废弃since 6.5.)	0
		(请使用BMKMultiColorPolylineView中strokeColors")

使用分段颜色绘制时，必须设置（内容必须为UIColor） 注：请使用 - (UIColor *)initWithRed:(CGFloat)red green:(CGFloat)green blue:(CGFloat)blue alpha:(CGFloat)alpha; 初始化UIColor。 使用[UIColor ***Color]初始化时，个别case转换成RGB后会有问题

initWithPolyline:

- (nullable instancetype) initWithPolyline:

(BMKPolyline *)

polyline

根据指定的折线生成一个折线View

参数

polyline

指定的折线数据对象

返回

新生成的折线View

属性说明

lineBloomBlurTimes

- (int) lineBloomBlurTimes

readwritenonatomicassign

模糊次数 since 6.5.7 取值范围 [1~10]，默认值为 1 注意：模糊发光模式下该属性生效，since 6.5.9可以替代渐变发光模式的lineBloomGradientASPeed

lineBloomGradientASPeed

- (CGFloat) lineBloomGradientASPeed

readwritenonatomicassign

透明度渐变速度 since 6.5.7 取值范围 [1.0f ~ 10.0f]，默认值为 5.0f 注意：渐变发光模式下该属性生效，since 6.5.9暂不支持

lineBloomMode

- (BMKLineBloomMode) lineBloomMode

readwritenonatomicassign

发光模式，仅支持颜色实折线；since 6.5.7 默认不发光，kBMKLineBloomModeNone

---

该类的文档由以下文件生成:

• BaiduMapAPI_Map.framework/Headers/BMKPolylineView.h
